Redis

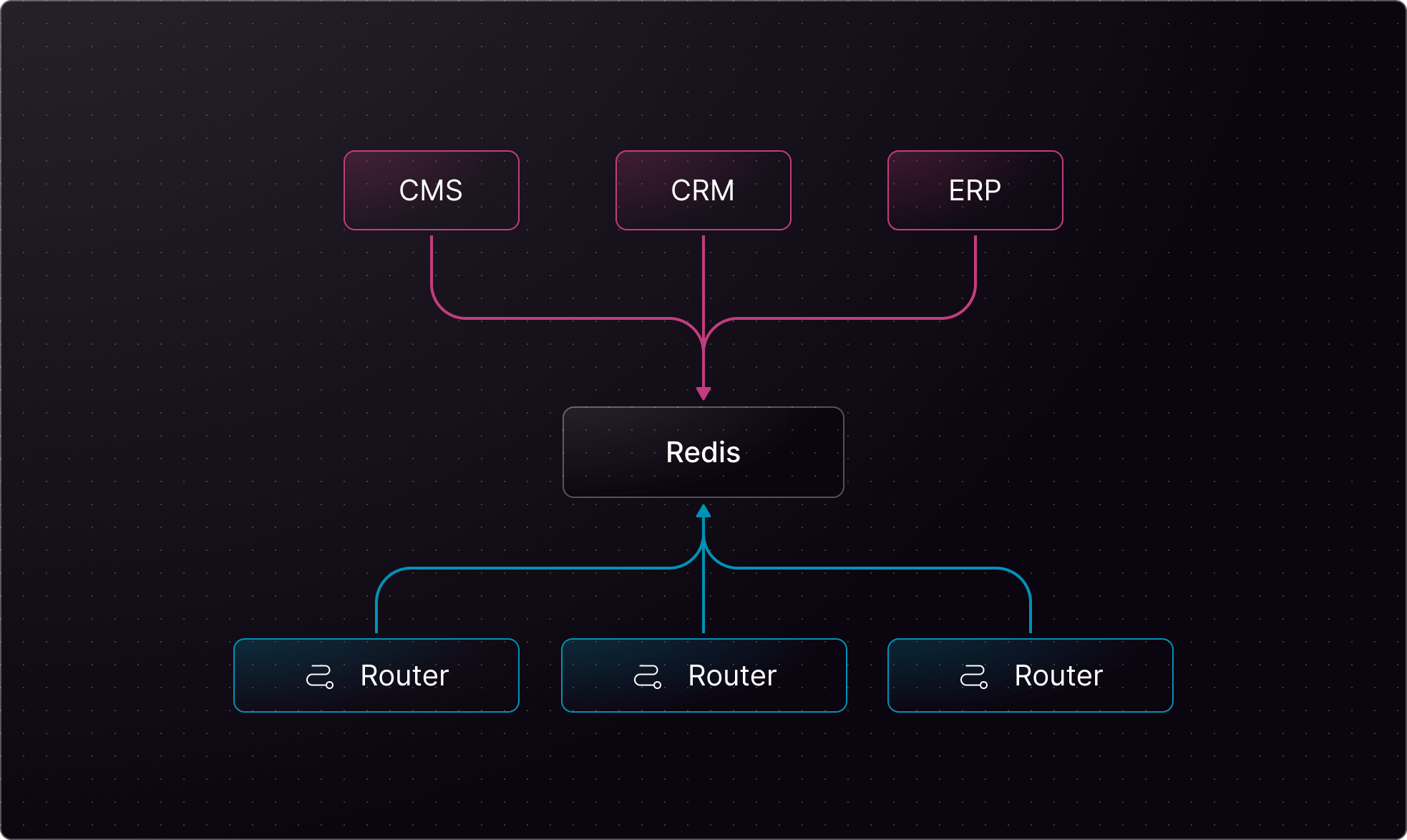

System architecture with CMS, CRM, ERP, Redis, and routers interconnecting them — Interconnected system with Redis and routers

Minimum requirements

Package	Minimum version
controlplane	0.150.7
router	0.226.0
wgc	0.85.2

Full schema example

Below is a comprehensive example of how to use Redis with Cosmo Streams. This guide covers publish, subscribe, and the filter directive. All examples can be modified to suit your specific needs. The schema directives and edfs__* types belong to the Cosmo Streams schema contract and must not be modified.

# Cosmo Streams

directive @edfs__redisPublish(channel: String!, providerId: String! = "default") on FIELD_DEFINITION
directive @edfs__redisSubscribe(channels: [String!]!, providerId: String! = "default") on FIELD_DEFINITION

# OpenFederation

directive @openfed__subscriptionFilter(condition: openfed__SubscriptionFilterCondition!) on FIELD_DEFINITION

scalar openfed__SubscriptionFilterValue

input openfed__SubscriptionFieldCondition {
    fieldPath: String!
    values: [openfed__SubscriptionFilterValue]!
}

input openfed__SubscriptionFilterCondition {
    AND: [openfed__SubscriptionFilterCondition!]
    IN: openfed__SubscriptionFieldCondition
    NOT: openfed__SubscriptionFilterCondition
    OR: [openfed__SubscriptionFilterCondition!]
}

# Custom

input UpdateEmployeeInput {
    name: String
    email: String
}

type Mutation {
   updateEmployeeMyRedis(employeeID: Int!, update: UpdateEmployeeInput!): edfs__PublishResult! @edfs__redisPublish(topic: "employeeUpdated", providerId: "my-redis")
}

type Subscription {
    filteredEmployeeUpdatedMyRedis(employeeID: ID!): Employee!
        @edfs__redisSubscribe(topics: ["employeeUpdated", "employeeUpdatedTwo"], providerId: "my-redis")
        @openfed__subscriptionFilter(condition: { IN: { fieldPath: "id", values: [1, 3, 4, 7, 11] } })
    filteredEmployeeUpdatedMyRedisWithListFieldArguments(firstIds: [ID!]!, secondIds: [ID!]!): Employee!
        @edfs__redisSubscribe(topics: ["employeeUpdated", "employeeUpdatedTwo"], providerId: "my-redis")
    filteredEmployeeUpdatedMyRedisWithNestedListFieldArgument(input: RedisInput!): Employee!
        @edfs__redisSubscribe(topics: ["employeeUpdated", "employeeUpdatedTwo"], providerId: "my-redis")
        @openfed__subscriptionFilter(condition: {
            OR: [
                { IN: { fieldPath: "id", values: ["{{ args.input.ids }}"] } },
                { IN: { fieldPath: "id", values: [1] } },
            ],
        })
}

input RedisInput {
    ids: [Int!]!
}

# Subgraph schema

type Employee @key(fields: "id", resolvable: false) {
  id: Int! @external
}

type edfs__PublishResult {
    success: Boolean!
}

You can create the above Event-Driven Graph (EDG—an abstract subgraph) with the following wgc command:

wgc subgraph publish edg --namespace default --schema eedg.graphqls

Router configuration

Based on the example above, you will need a compatible router configuration.

events:
  providers:
    redis:
      - id: my-redis # Needs to match with the providerID in the directive
        urls:
        - "redis://localhost:6379/"

Example Query

In the example query below, one or more subgraphs have been implemented alongside the Event-Driven Graph to resolve any other fields defined on Employee, e.g., tag and details.surname.

subscription {
  filteredEmployeeUpdatedMyRedis(employeeID: 1) {
    id # resolved by the Event-Driven Graph (through the event)
    tag # resolved by another subgraph
    details { # resolved by another subgraph
      surname
    }
  }
}

System diagram
