Webhooks

You can setup multiple webhooks for your organization that subscribe to events.

If you are interested in platform webhook events. Check the docs here.

Organization Events

FEDERATED_GRAPH_SCHEMA_UPDATED

Triggered when the federated graph schema has been updated.

• federated_graph: An object representing the federated graph details.

  • id: The unique identifier for the federated graph.

  • name: The name of the federated graph.

  • namespace: The namespace of the federated graph

• errors: A boolean value indicating whether there were errors during the update.

• actor_id (optional): The identifier of the actor updating the schema.

Sample Payload:

{
  "version": 1,
  "event": "FEDERATED_GRAPH_SCHEMA_UPDATED",
  "payload": {
    "federated_graph": {
      "id": "graph123",
      "name": "MainGraph",
      "namespace": "default"
    },
    "errors": false,
    "actor_id": "user5678"
  }
}

Verification

To ensure the webhook data is coming from a trusted source and hasn't been tampered with during transit, we employ HMAC signatures. When setting up a webhook, you provide a secret. This secret is used to compute a signature that is sent along with each webhook request.

The header containing this signature is X-Cosmo-Signature-256.

Verification Example

To verify the webhook request, you need to compute the HMAC signature on your server and compare it to the signature in the X-Cosmo-Signature-256 header.

Here's an example in Node.js:

import crypto from 'crypto';

function verifySignature(body, receivedSignature, secret) {
  const computedSignature = crypto
    .createHmac('sha256', secret)
    .update(body)
    .digest('hex');

  return computedSignature === receivedSignature;
}

// Usage:
const isVerified = verifySignature(JSON.stringify(req.body), req.headers['x-cosmo-signature-256'], YOUR_SECRET);

How to set up Webhook notifications

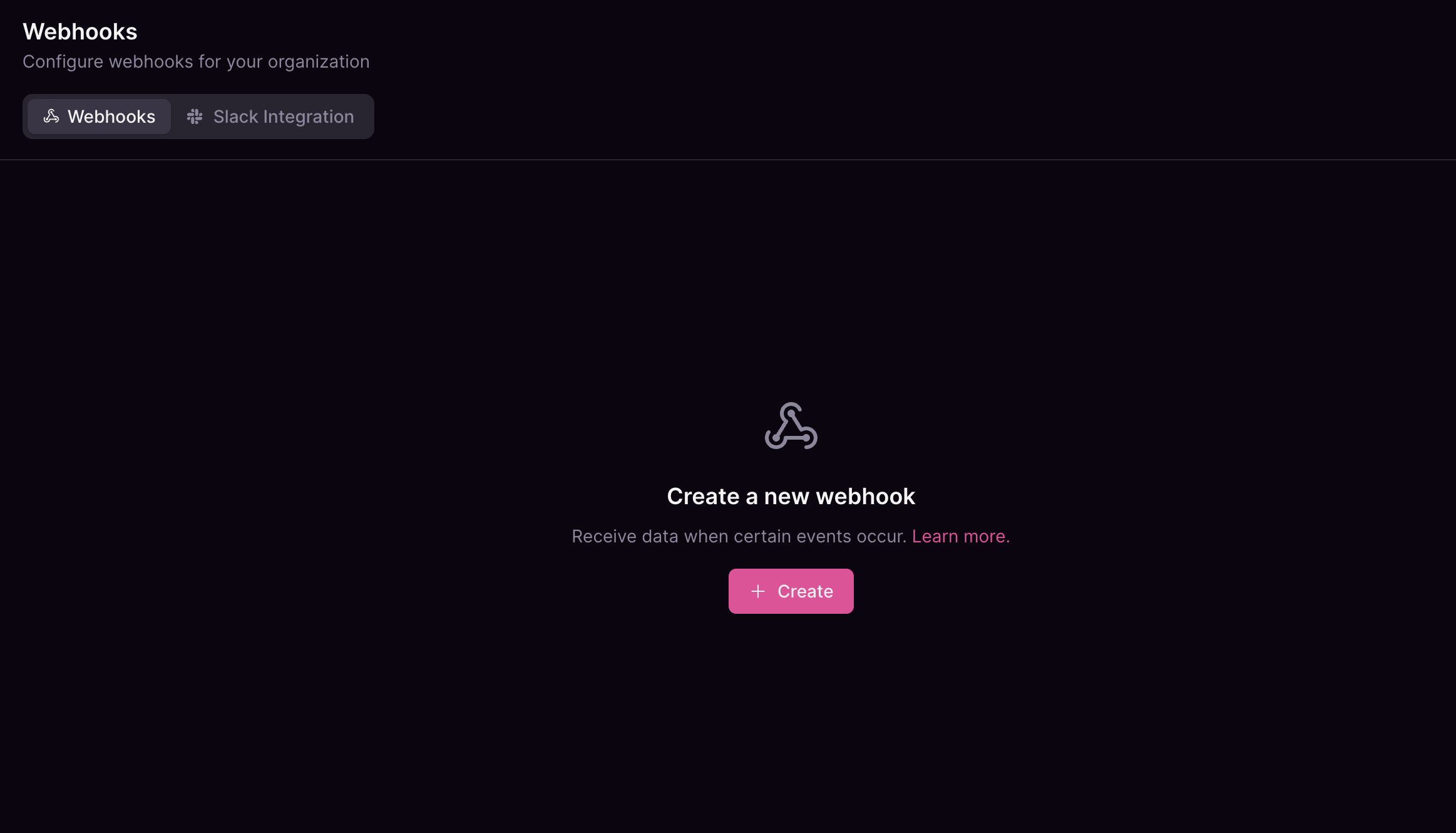

• Navigate to the notifications page on Cosmo

• In the Webhooks tab, click on the Create button.

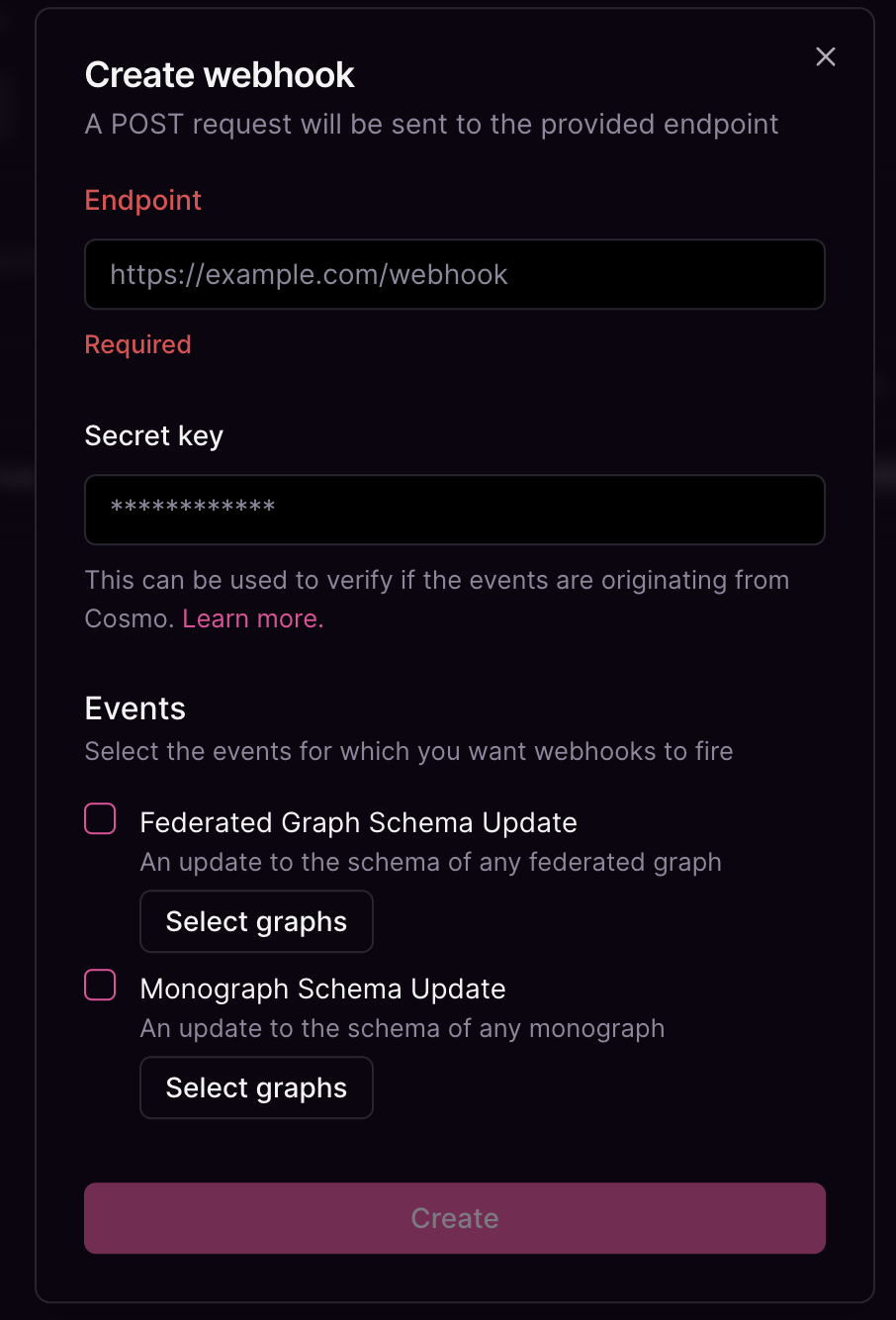

• Provide the endpoint of the webhook, and the webhook secret for verification and then select the events you want to be notified of.

• Lastly, click on the Create button.
